It was a Jam packed week I started Vcarve and finished it won't be able to cut on friday
12/9/22 Because I will be leaving early, other accomplishments were I started the new shop Eagle library, which lead me to a problem where I couldn't have to file open up in fusion but I believe I will fix that soon, but while creating this library I was around helping my peers just like last week I was helping them by teaching them how to make the pcbs create personal libraries or create their breadboard versions of there pcb.
All in all this was a very enjoyable week and expect a shelf part to be cut next week.
This is the first component which is the metro mini I have a little fine tuning to do but it works and is complete

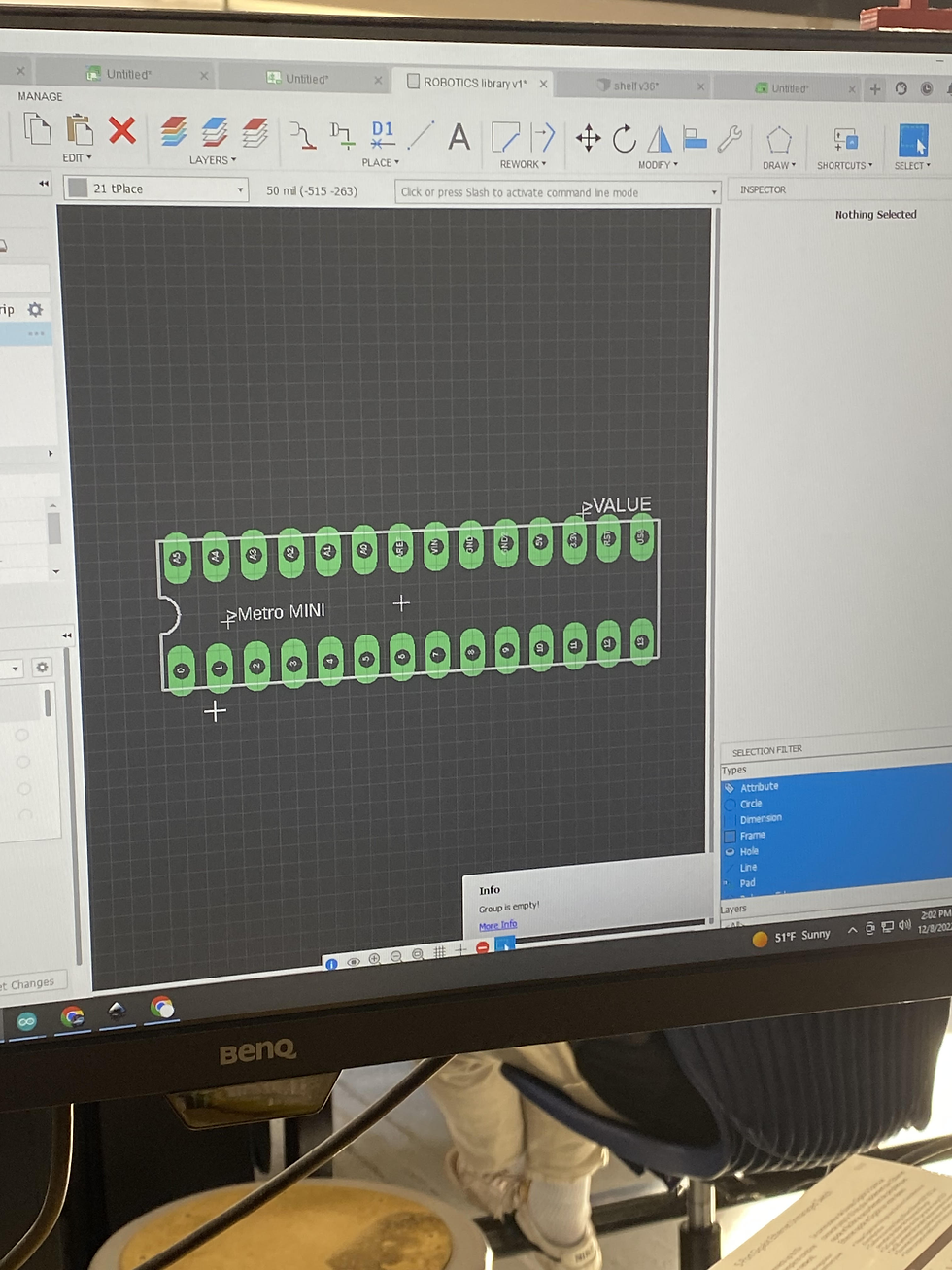

This is what the footprints of the metro mini would look like while you're on the page to create your pcb
This is a new component we got in shop called the PICO there isn't many libraries made fir this so we kind of had to start from scratch me and Scott are still in the process of making this but soon this will also be added to the library
This is Vcarve I also included the tool paths for each holeor pocket
The tool path on the 3d tab of Vcarve
This is me helping my peers make breadboard versions of the pcbs I helped both and one got their board completed and the other need to just fix code and wiring for his to work
